NAME

LabelFrame - a frame with a Label

SYNOPSIS

LabelFrame pathName ?option value...?

DESCRIPTION

STANDARD OPTIONS

-borderwidth or -bd

-relief

OPTIONS from Label

WIDGET-SPECIFIC OPTIONS

-side (read-only)

WIDGET COMMAND

LabelFrame::align ?arg...?

pathName cget option

pathName configure ?option? ?value option value ...?

pathName getframe

EXAMPLES

NAME

SYNOPSIS

DESCRIPTION

The LabelFrame widget is used by Slab LabelEntry and SelectFont and, through the former, by PasswdDlg.

WIDGET-SPECIFIC OPTIONS

"Read-only" options must be supplied as arguments to the LabelFrame command. The values of these options cannot be changed later by calling the configure widget command.

-side (read-only)

Specifies where to position the Label relative to the user frame: top, bottom, left or right.

WIDGET COMMAND

LabelFrame::align ?arg...?

This command aligns the text label of each widget supplied in arg ... that has class LabelFrame by setting the widget -width to the largest + 1. Not appropriate if the label is an image or a text/image compound. In BWidget the argument can have a class that is derived from LabelFrame. Slab does not provide this feature.

pathName cget option

Returns the current value of the configuration option given by option. Argument option may have any of the values accepted by the creation command LabelFrame.

pathName configure ?option? ?value option value ...?

Query or modify the configuration options of the widget. If no option is specified, returns a list describing all of the available options for pathName. If option is specified with no value, then the command returns a list describing the one named option (this list will be identical to the corresponding sublist of the value returned if no option is specified). If one or more option-value pairs are specified, then the command modifies the given widget option(s) to have the given value(s); in this case the command returns an empty string. Argument option may have any of the values accepted by the creation command LabelFrame. Read-only options cannot be modified.

pathName getframe

Return the frame where the user can create any other widget.

EXAMPLES

A LabelFrame that is mapped into the toplevel window "."

package require Slab
LabelFrame .lf -side top
.lf configure -text {LabelFrame is pale yellow, its contents are pale green} -anchor center -bg #ffffaa
pack .lf -expand 1 -fill both
set userFrame [.lf getframe]
frame $userFrame.mine -bg #88ff88 -height 100 -width 100
pack $userFrame.mine -expand 1 -fill both

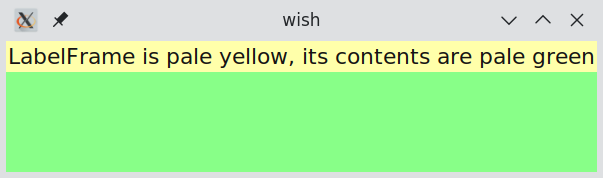

The resulting toplevel window, on the X11 windowing system, including window manager decorations. In this example the window has expanded horizontally to fit the label, and the frame $userFrame.mine is mapped into the "user frame" $userFrame, covering the color of the latter with its own.
